Conax Flexible Tube Assemblies

Categories: ,

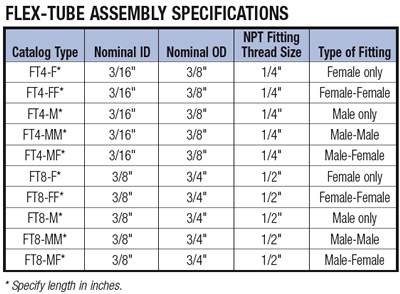

Conax Technologies Flex-Tube Assemblies protect wires from mechanical abuse. They are available in any length, factory assembled and furnished complete with end fittings (standard male or female pipe thread). Standard end fittings are plated brass or steel. Stainless steel Conax Technologies Packing Glands may be substituted at additional cost.
Interlock construction uses galvanized steel for 3/4″ OD and brass for 3/8″ OD, both with overall polyvinyl covering.

Ordering Notes:
To order cable and connectors only, order as follows:

To add a terminal head, order as follows:
B2(FT4-M30), .25NPT

To order as part of a complete assembly, order as follows:
