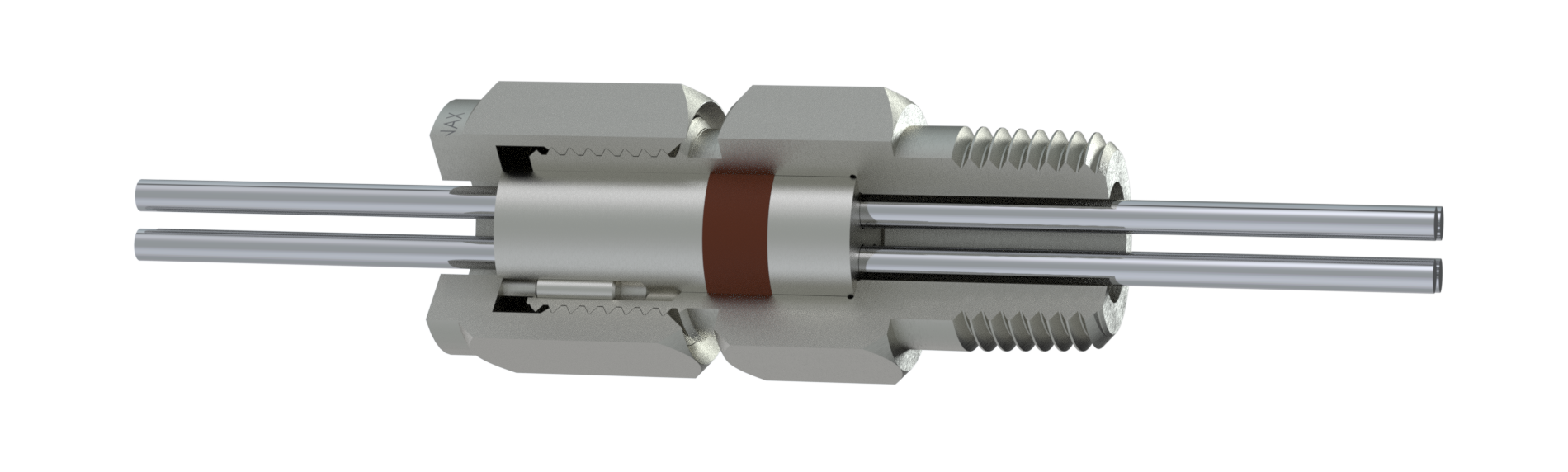

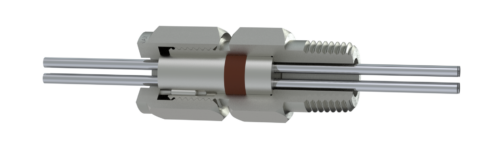

Conax Multi-hole Metal Compression Seal Fitting (MHM)

Categories: , , Tags: , , , , , ,


* Seals 1 or More Elements
* For Gas or Liquid
* Stainless Steel Fitting
* “Soft Sealant”
* Adjustable Immersion Length
* Selected Elements Can Be Readily Replaced
* Reusable
* Wires Easily Assembled or Replaced In Field
* Temperature Range From -400°F to +1600°F (-240°C to +870°C)
* Pressure*: Vacuum to 10,000 PSI (690 bar)

Application Ideas:
MHM glands can be customized to accommodate special hole patterns, irregular shapes and higher density requirements for gradient thermocouple, RTD or thermistor probes, tube bundles, liquid level sensors or other devices.

Replacement Sealant (RS) available, consisting of sealant only.
Example: RS-MHM5-040-16-T
