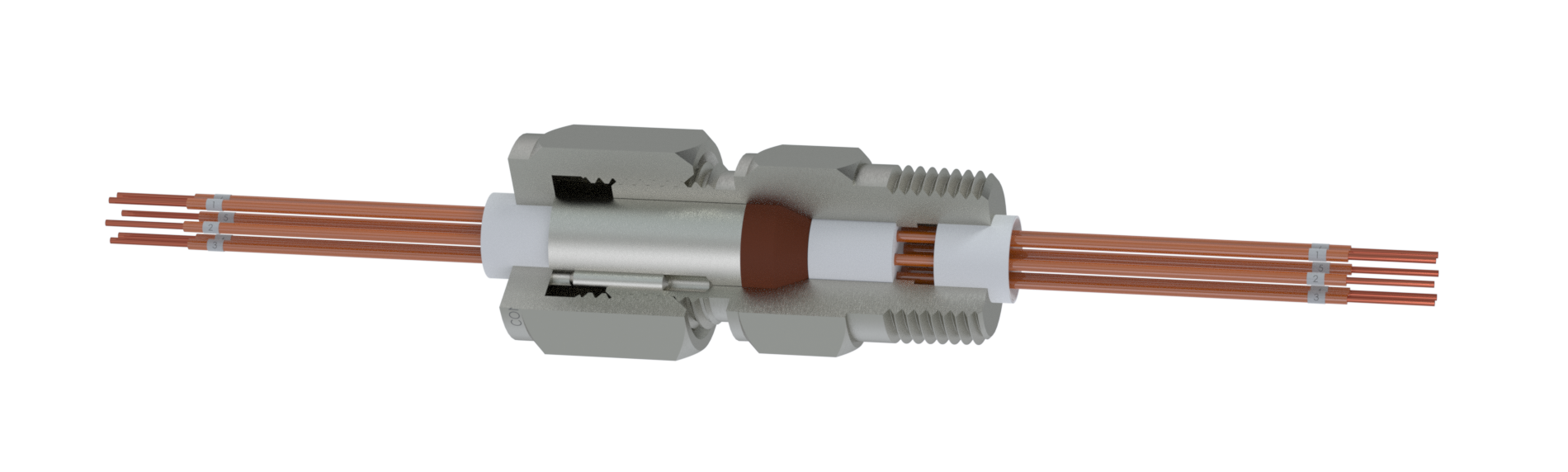

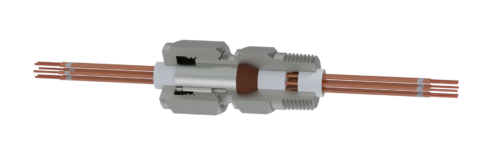

Conax Multi-wire Power Compression Seal Feedthrough (PL)

Conax Multi-wire Power Compression Seal Feedthrough (PL)

Categories: , , , Tag:


Description

Example: PL-12-A3-T, 24/36

Transformer and motor power, conduit box feedthroughs, pressure and vacuum chamber power and instrument feedthroughs, etc.
Features:

* Stainless Steel Fitting
* For Gas or Liquid
* Easy Installation -No “Potting”
* Seals 1 to 12 Wires
* Pressure*: Vacuum to 10,000 PSI (690 bar)
(Refer to Pressure Rating (PSI) Guide)
* Rated: 600 Volts to 55 Amps
* Field Adjustable
* Reusable Fitting
* Wire Identification Markers Applied
* Wires Readily Assembled or Replaced in Field
* Available With or Without Conductors
* Available With Thermocouple Material Conductors – Selected Sizes

Available replacement pieces are:
* Replacement Packing Set (RPS) consisting of sealant and two insulators is available.
Example: RPS-PL-12-3-T
* Replacement Sealant (RS) consisting of sealant only is also available.
Example: RS-PL-12-3-T
