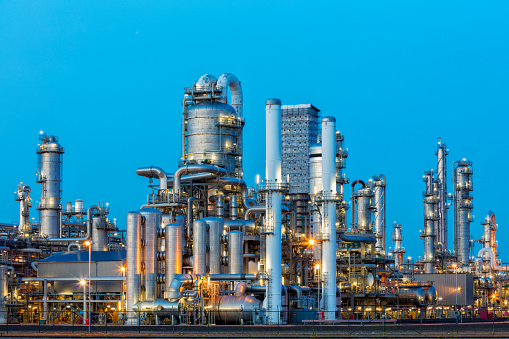

Solutions for the Petrochemical Industry
Your indispensable partner
Innovative ideas. Customized solutions.
For over 70 years, Conax has been a leader in the design and manufacture of compression seal fittings, temperature sensors and cable and harness assemblies for a broad variety of applications and a wide range of industries. Our innovative designs span the upstream and downstream sectors of the petrochemical industry.
Conax is a leading source for thermocouple and RTD temperature sensors, compression seal fittings, instrument feedthroughs, retractable analyzer sample probes, retractable chemical injection quills and Class 1, Division 1 wire conduit seals. We have developed customized solutions for a number of highly specialized client challenges, including:
- Ultra-high-pressure compression seal fittings with 65,000 PSI operating pressure rating.
- Redundant seal assemblies for probes and instruments inserted into gas or liquid processes.
- A temperature sensor assembly with an SASiC protection tube that can withstand extreme high temperatures and can be rotated 180° to double the life of the sensor.
- Single and multiple bore split internal compression seal fittings to seal long, down-hole temperature sensors; the split internal design allows for the surface assembly at the well-head flange of the seal to fit over the installed sensor’s termination.
The ideas for our custom-designed solutions are the result of strong partnerships with our customers. We listen to your challenges and work with you to engineer the best solutions. Our comprehensive solutions have been applied to upstream exploration, extraction and R&D and to downstream refining, distribution and storage.
Sample Probe Assemblies
Conax Technologies’ Sample Probe Assemblies (SPA) are used to insert and retract an analyzer sample probe or injection quill into a pressurized process through a process isolation valve. Conax SPAs are designed for unique applications, including: process analysis, flare stack emissions, hot tapping liquid or gas streams, and more. Conax features include:
- Plasma welded stop collar
- Retaining Chain Kit
- Wake frequency calculations
- Various probe ends and valve types available
If you need engineering help to ensure you’re choosing the proper SPA for a specific application, we’ve created the Wake Frequency Solution Builder™ to generate immediate, online wake frequency calculations. This tool enables you to enter data for the specific SPA you need and receive immediate calculation results, based on ASME PTC 19.3 TW-2010 and/or IEC/TR 61831 standards. If there are problems with the configuration of your SPA, you’ll see exactly what needs to be adjusted. If the design is approved, you’ll see confirmation that each element tested has passed, and you can contact us to purchase the SPA.
- Conax Down-Hole Semi-Rigid Cable Compression Seal Fitting—When installing long tubes, cables or items with connectors attached down hole, it’s inconvenient or impossible to feed these long-length items through fitting holes. Split fittings are a problem solver, because with the tight-toleranced internals removed, you can easily lower items down-well, then assemble the seal around the tubes/cables right where needed.
- Hazardous Location (HL) Compression Seal Fitting—Conax Technologies’ HL Compression Seal Fittings are designed for protection in a wide variety of hazardous environments. The Conax HL Fitting is pressure rated to 500 PSIg and has been CSA® certified in the U.S. and Canada for use in hazardous locations defined by the NEC® as Class I, Div. 1 and 2, Groups B, C, and D; Class II, Div. 1 and 2, Groups E, F, and G; and Class III.
- High Density (HD) Feedthroughs—Conax Technologies’ HD Series high density mechanically sealed feedthrough assemblies allow multiple insulated wires to be installed through a single port. These assemblies consist of a stainless steel tube swaged over bundled 24 AWG solid Teflon-insulated thermocouple wire or copper wires. The thermocouple pairs are available with or without junctions. HD assemblies provide an excellent means to pass numerous thermocouple, RTD and low voltage instrumentation wires through a vessel wall without breaching the wall in multiple locations.
- Multi-Hole Metal (MHM) Compression Seal Fittings—Conax MHM fittings can be customized to accommodate special hole patterns, irregular shapes and high density requirements. MHM fittings can be used to seal gradient thermocouple, RTD or thermistor probes, tube bundles, or a variety of devices within a single fitting. Our unique soft sealant technology seals against gases or liquids and resists element movement under pressure. Immersion lengths can be easily adjusted in the field. Individual elements can be set at different lengths to monitor multiple points.
- RTD & Thermocouple Assemblies for Hazardous Locations—Conax CBT 100, CBT 200, CBT 300 and CT 600 Series assemblies meet U.S. and Canadian standards (NRTL/C, CSA) for use in hazardous locations as defined by NEC Class 1, Division 1, Groups B, C and D; Class II, Groups E, F and G; and Class III.
- CBT 100 Series sensor-terminal head assemblies are available in all thermocouple calibrations and in RTD assemblies with 100, 200, 500 and 1000 ohm platinum, 10 ohm copper or 120 ohm nickel elements. Assemblies are available with stainless steel sheaths, a W8 mounting fitting and explosion-proof terminal head with terminal strip and 4-20mA transmitter.
- CBT 200 and CBT 300 assemblies are NEC-compliant replacement probes for use with UL and CSA-approved terminal heads in hazardous locations. CBT 200 provides a W8 fitting for attachment to the terminal head and to the vessel. CBT 300 provides a W7 fitting for attachment to the terminal head. A separate adjustable fitting is required to attach the probe to the vessel.
- CT 600 Series sensor-terminal head assemblies are available in all thermocouple calibrations and in RTD assemblies with 100, 200, 500 and 1000 ohm platinum, 10 ohm copper or 120 ohm nickel elements. Assemblies are available with stainless steel or Inconel sheaths, a spring-loaded mounting fitting (CSLW) and explosion-proof terminal head with terminal strip.
- Direct Immersion Grounded Junction Thermocouples—Conax Technologies has developed and tested a direct immersion, 1/8" diameter grounded junction thermocouple design for operating pressures to 40,000 PSIg. Units have been proof pressure tested to 60,000 PSIg at room temperature. This design uses an economical proprietary method of silver brazing a high pressure fitting directly to the thermocouple sheath. Testing concluded that the thermocouple's calibration (Type J Thermocouple) was maintained after silver brazing and pressure testing.
- Sample Probe Assemblies—Conax Technologies’ Sample Probe Assembly (SPA) is used to insert and retract an analyzer sample probe or injection quill into a pressurized process through a process isolation valve. Ideal for unique applications such as process analyzing, flare stack emissions, or hot tapping liquid or gas streams.
- Temperature Sensors with Thermowells—Thermowells are pressure-tight receptacles that extend the life of a temperature sensor in environments where the sensor is not chemically compatible with the process media or the sensor does not have the mechanical strength to withstand the process flow or pressure. Thermowells also facilitate removing, changing, checking or replacing sensors without draining the process system. The use of standardized thermowells throughout a plant permits easy relocation of sensors.
Bring us your unique challenges.
We know that innovative ideas come from collaboration. By taking the time to understand your unique challenges, we develop the ideal solutions that help you—and your customers—succeed.
Our commitment to providing quality, innovative products on time and at a competitive cost continue to make us an indispensable partner for every customer we serve.
Customer loyalty
Customer satisfaction and loyalty fuels everything we do. Conax is proud to maintain a Net Promoter Score that is consistently in the 99th percentile.
Complete the contact form to find out more
